Metaxify¶

The @metaxify decorator can be used to automatically enrich Dagster assets definitions with information taken from Metaxy features.

It's highly recommended to @metaxify all your Dagster assets that produce Metaxy features. It's also recommended to use it in combination with MetaxyIOManager.

@metaxify modifies most of the attributes available on the asset spec.

Deps¶

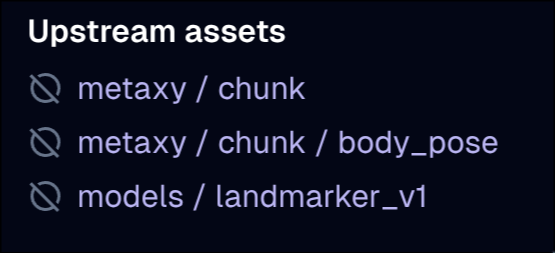

Upstream Metaxy features are injected into deps.

Dagster UICode

Deps

🙋‍♂️ models/landmarker_v1 is an upstream non-metaxy Dagster asset.

spec = FeatureSpec(..., deps=[Chunk, BodyPose])  # (1)!

Chunk and BodyPose are Metaxy feature classes

Code Version¶

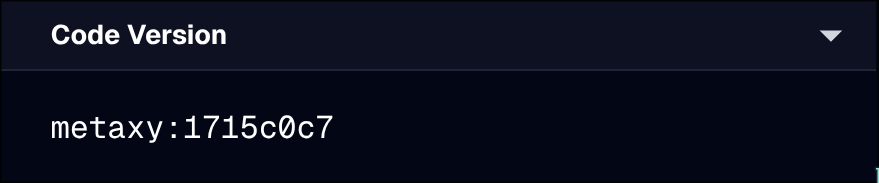

Metaxy's feature spec code version is appended to the asset's code version in the format metaxy:<version>.

Code Version

Description¶

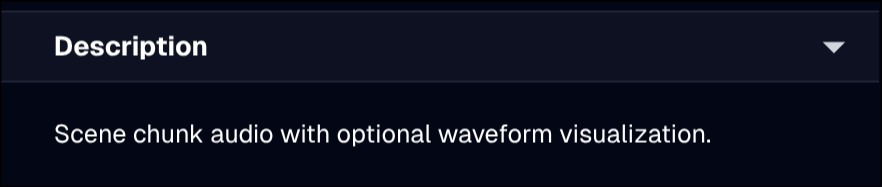

The Metaxy feature class docstring is used if the asset spec doesn't have a description set.

Dagster UICode

Description

class AudioFeature(...):
    """Scene chunk audio with optional waveform visualization."""

Metadata¶

@metaxify injects static metadata into the asset spec.

All standard metadata types are supported. Additionally, metaxy/info is added. It contains the Metaxy feature spec, Metaxy project, Metaxy version and enabled Metaxy plugins.

Column Schema¶

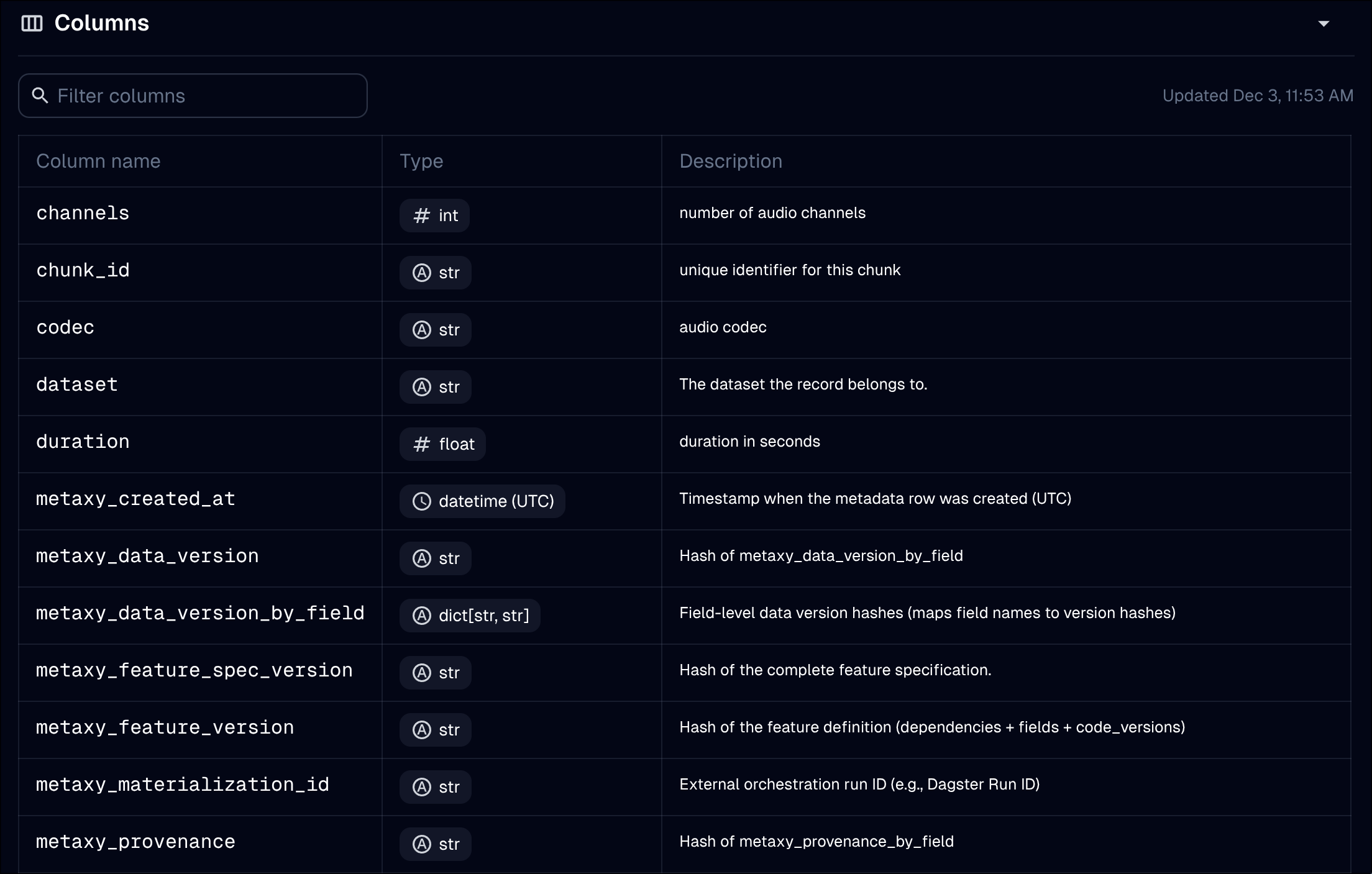

Pydantic fields schema is injected into the asset metadata under dagster/column_schema. Field types are converted to strings, and field descriptions are used as column descriptions. If the asset already has a column schema defined, Metaxy columns are appended (user-defined columns take precedence for columns with the same name).

Warning

Pydantic feature schema may not match the corresponding table schema in the metadata store. This will be improved in the future.

Dagster UICode

Column Schema

class AudioFeature(...):
    # some fields are inherited
    duration: float = Field(description="duration in seconds")
    sample_rate: int = Field(description="sample rate in Hz")
    channels: int = Field(description="number of audio channels")
    codec: str = Field(description="audio codec"))

Column Lineage¶

Column lineage is injected into the asset metadata under dagster/column_lineage.

Tracks which upstream columns each downstream column depends on by analyzing:

Direct pass-through: Columns with the same name in both upstream and downstream features.
FeatureDep.rename: Renamed columns trace back to their original upstream column names.
FeatureDep.lineage: ID column relationships based on lineage type (identity, aggregation, expansion).

Column lineage is derived from Pydantic model fields on the feature class. If the asset already has column lineage defined, Metaxy lineage is merged with user-defined lineage (user-defined dependencies are appended to Metaxy-detected dependencies for each column).

Kinds¶

"metaxy" kind is injected into asset kinds if inject_metaxy_kind is True and there are less than 3 kinds currently.

Tags¶

metaxy/feature and metaxy/project are injected into the asset tags.

Arbitrary Asset Attributes¶

All keys from "dagster/attributes" in the feature spec metadata (such as group_name, owners, tags) are applied to the Dagster asset spec (with replacement).
